Battery – DEYE SE-F16 (16kWh)

• Battery Type: LiFePO4
• Capacity: 314Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V – 57.6V
• Nominal Energy: 16 kWh

Charge / Discharge:
• Recommended Charge Current: 157A
• Max Continuous Charge Current: 160A
• Recommended Discharge Current: 157A
• Max Continuous Discharge Current: 160A

System Parameters:
• Recommended Depth of Discharge: 90%
• Scalability: Up to 32 units in parallel
• Cycle Life: ≥6000 cycles

General Data:
• Dimensions: 400 × 708 × 233 mm
• Weight: ~109 kg
• IP Rating: IP21
• Operating Temperature:
 • Charge: 0°C to 55°C
 • Discharge: -20°C to 55°C
• Communication: CAN2.0 / RS485 / Bluetooth + App

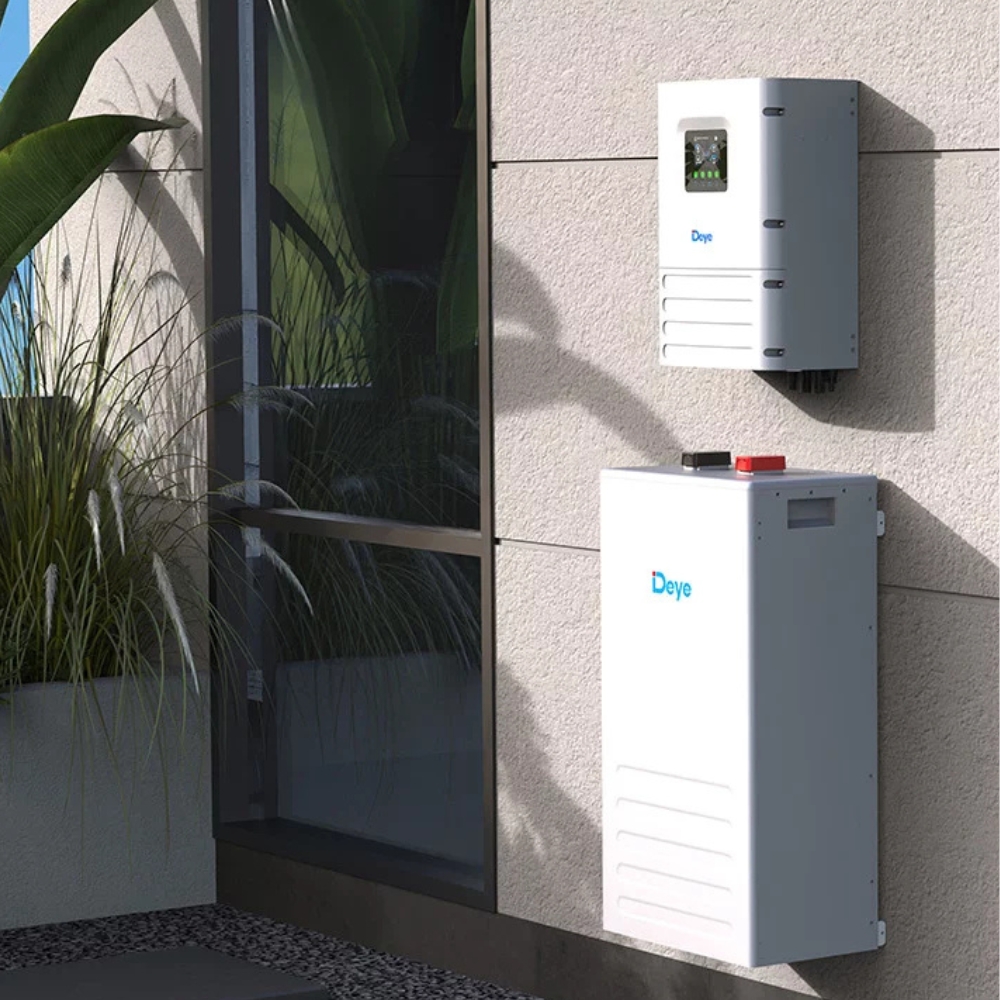

System Overview

• System Type: Hybrid (Solar + Grid + Battery)
• Output Phase: Single / Three Phase compatible (model dependent)
• Monitoring: Smart App / WiFi Enabled
• Protection: Overload / Short Circuit / Over Voltage / Temperature Protection
