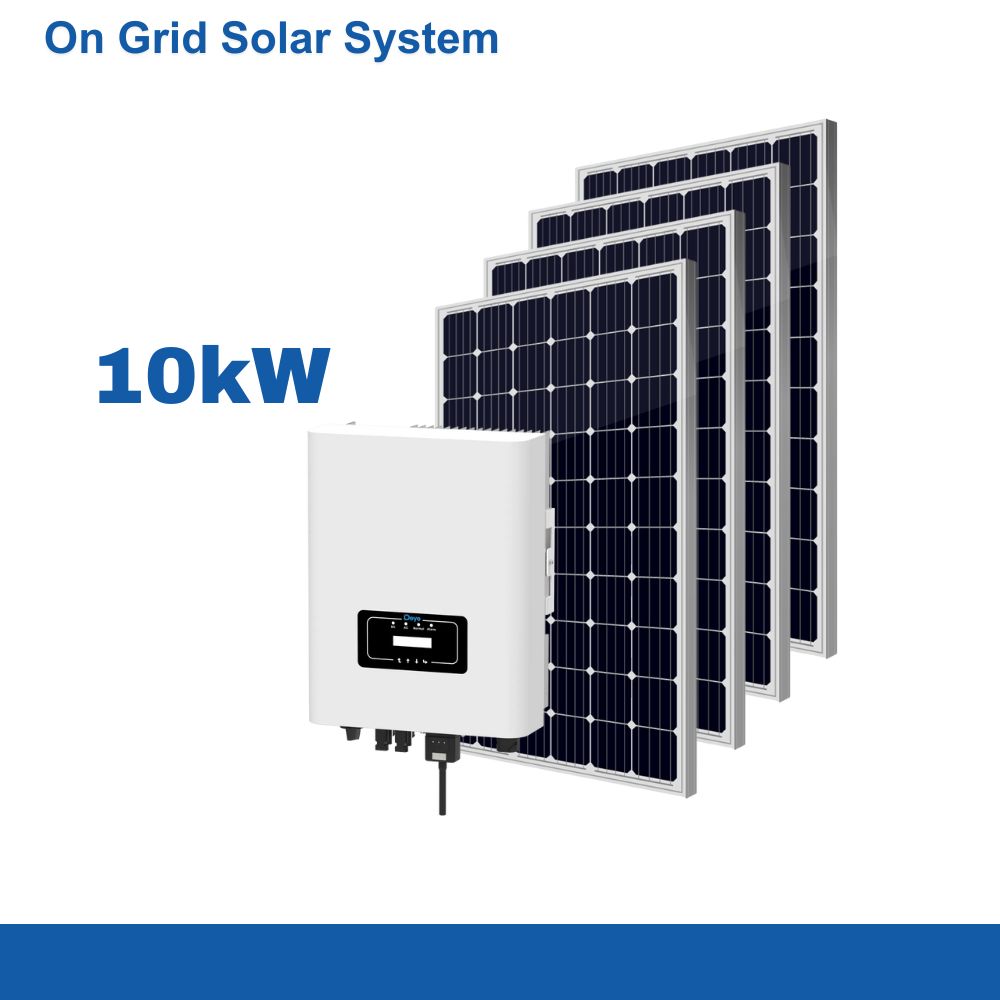

10kW On Grid Solar System

10kW on grid solar system is a powerful solar solution designed to meet the energy needs of large commercial and industrial buildings. This type of solar system consists of high-quality solar panels, a 3-phase inverter, and mounting hardware, and is designed to connect to the grid.

• 10kW Growatt / Goodwe On grid Inverter, 10 Years Product Warranty
• JA Solar 550W x 19 Nos, 25 Years Performance Warranty, 10 Years Product Warranty
• Installation and Workmanship: 10 Years Guarantee
• Maintenance: 2 years Labor free service and inspections
• Average Monthly Units Generation: 1100+ Units
• Monthly Electricity Bill Covered: 83,000 LKR
• Remote Monitoring System: Provided Free
• All CEB / LECO Charges and Installation charges included in this price.
• Main solar tariff schemes deployed by CEB / LECO: Net Metering, Net Accounting, Net Plus

Solar Panels: 10kW 3phase on-grid solar system typically consists of 20-30 solar panels, depending on the wattage and efficiency of the panels used. The panels are typically monocrystalline and have a power output ranging from 460W to 550W. The size of the panels is around 2.3m x 1.1m, and they are mounted on the roof or ground mount system of the building.

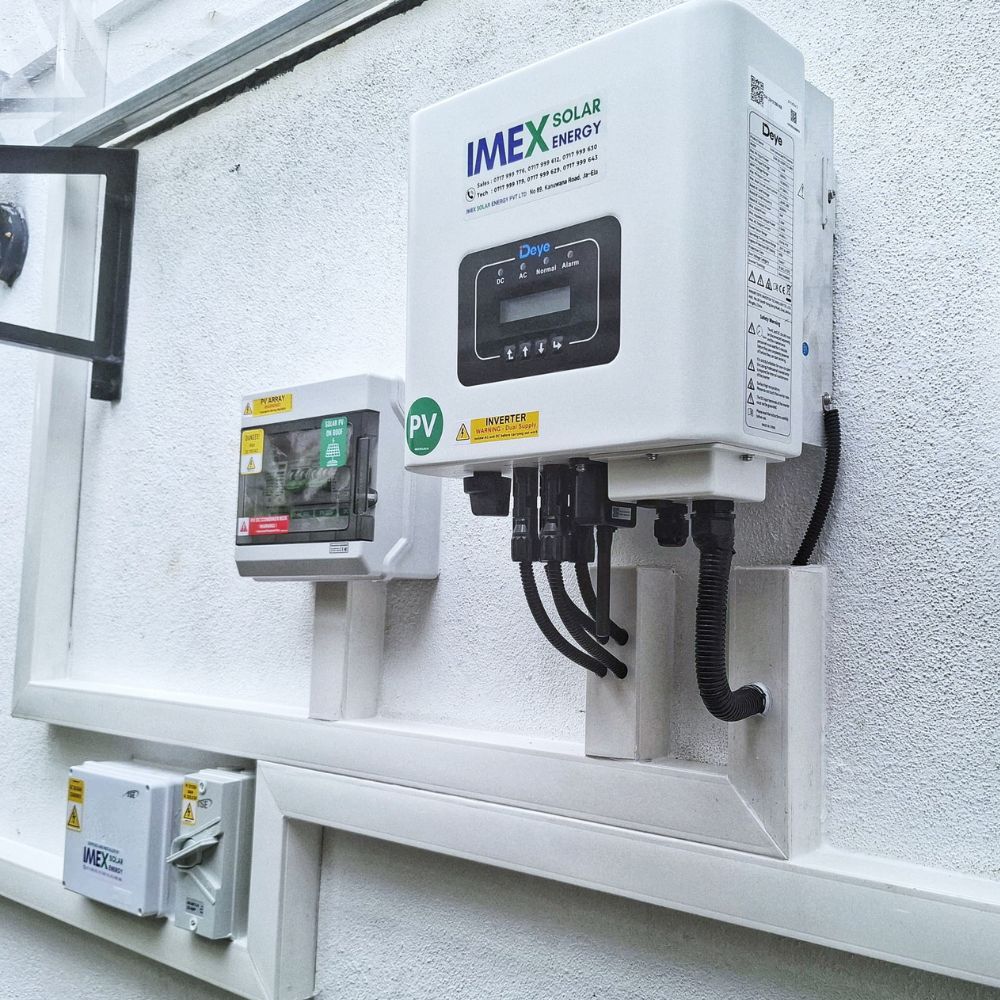

Inverter: The heart of a 10kW 3-phase on-grid solar system is the 3-phase string inverter, which converts the DC electricity generated by the solar panels into AC electricity that can be used to power the building. The inverter is typically installed inside the building, close to the main electrical panel. The inverter used for a 10kW 3 phase on-grid solar system should have a capacity of at least 10kW.

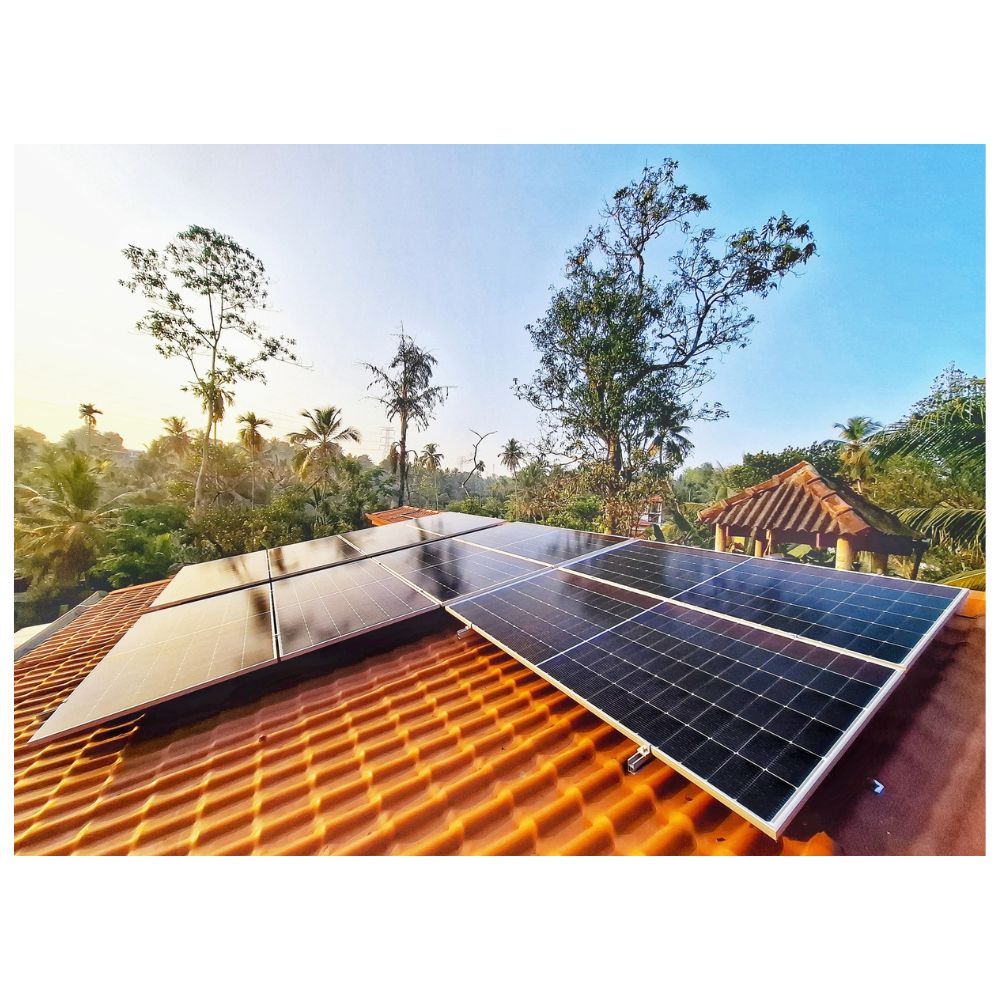

Mounting System: The solar panels are mounted on the roof or ground using a mounting system. The mounting system should be designed to withstand the weight of the panels and the wind load. The type of mounting system used will depend on the building’s roof type, size, and orientation.

Electrical Components: 10kW on-grid solar system requires various electrical components, such as breakers, fuses, wiring, and monitoring devices, to ensure the safe and efficient operation of the system. These components are typically installed by a licensed electrician.

Grid Connection: 10kW on-grid solar system is connected to the electrical grid through a net metering system. The excess electricity generated by the solar system is sent back to the grid, and the building owner receives credit for the electricity sent back.

The output of a 10kW 3-phase on-grid solar system can vary depending on various factors such as the location, orientation of the solar panels, shading, and weather conditions. However, a well-designed and installed system can generate around 35-45 kWh of electricity per day, which is enough to power a large commercial or industrial building.

In summary, a 10kW 3-phase on-grid solar system is a powerful solar solution that can provide significant cost savings and environmental benefits to large commercial and industrial buildings. It is a complex system that requires professional installation and maintenance to ensure optimal performance. By working with a reputable solar installer, building owners can design and install a high-quality solar system that meets their energy needs and helps reduce their dependence on grid electricity.

At IMEX Solar we provide tailor-made engineering solutions to suit individual project requirements by integrating the latest technology developments into our project solutions.

Our engineering team excels in addressing specific consumer needs and developing superior quality solar power systems to yield the best results for our customers.

Reserve your booking contact an Expert Today for free estimate or visit our office.
