10 YEARS WARRANTY

5KW SOLAR SYSTEM – 625W PANELS + DEYE 5KW INVERTER + 5.12KWH BATTERY

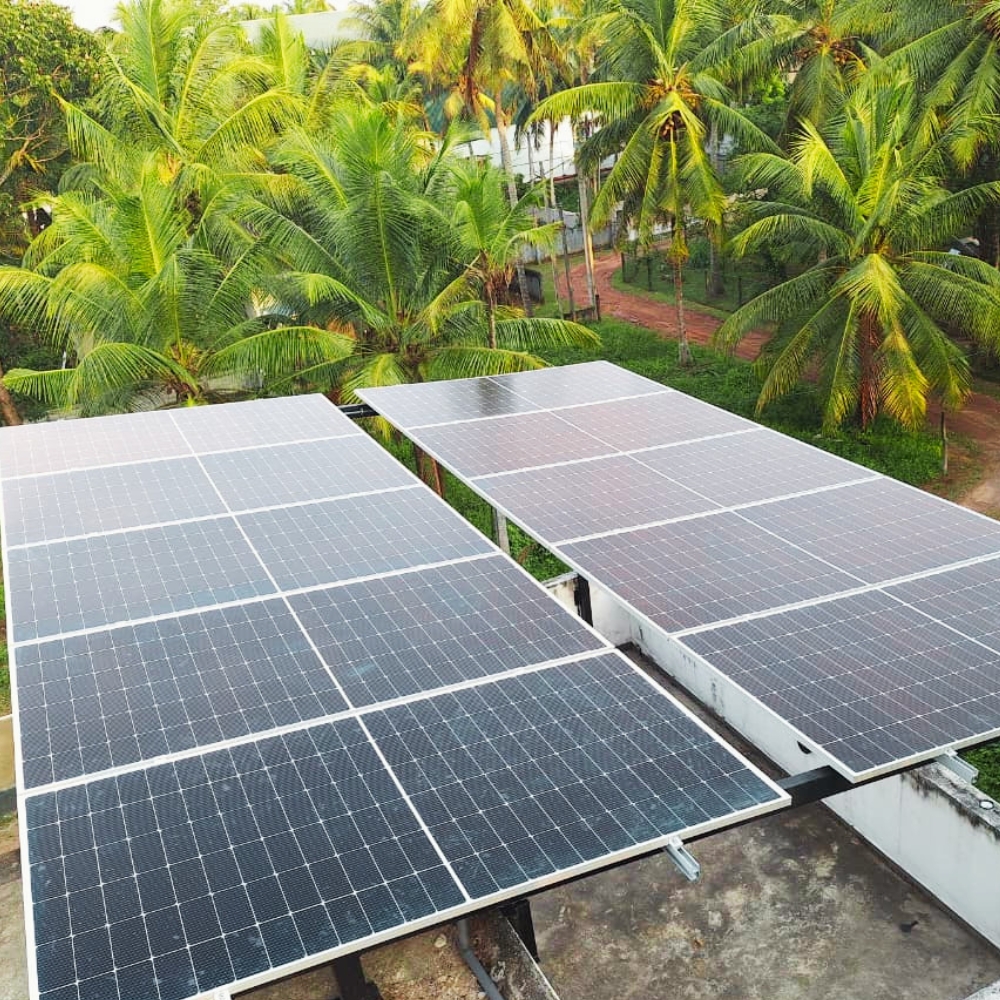

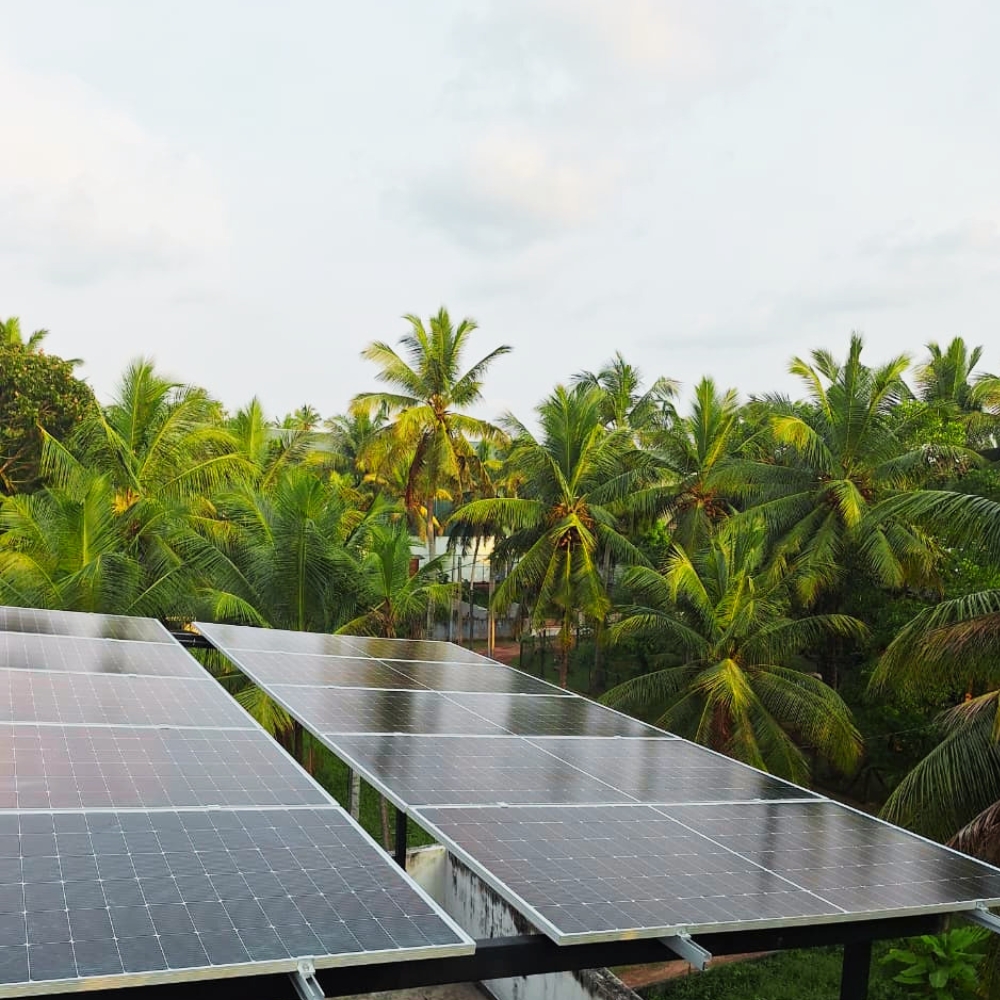

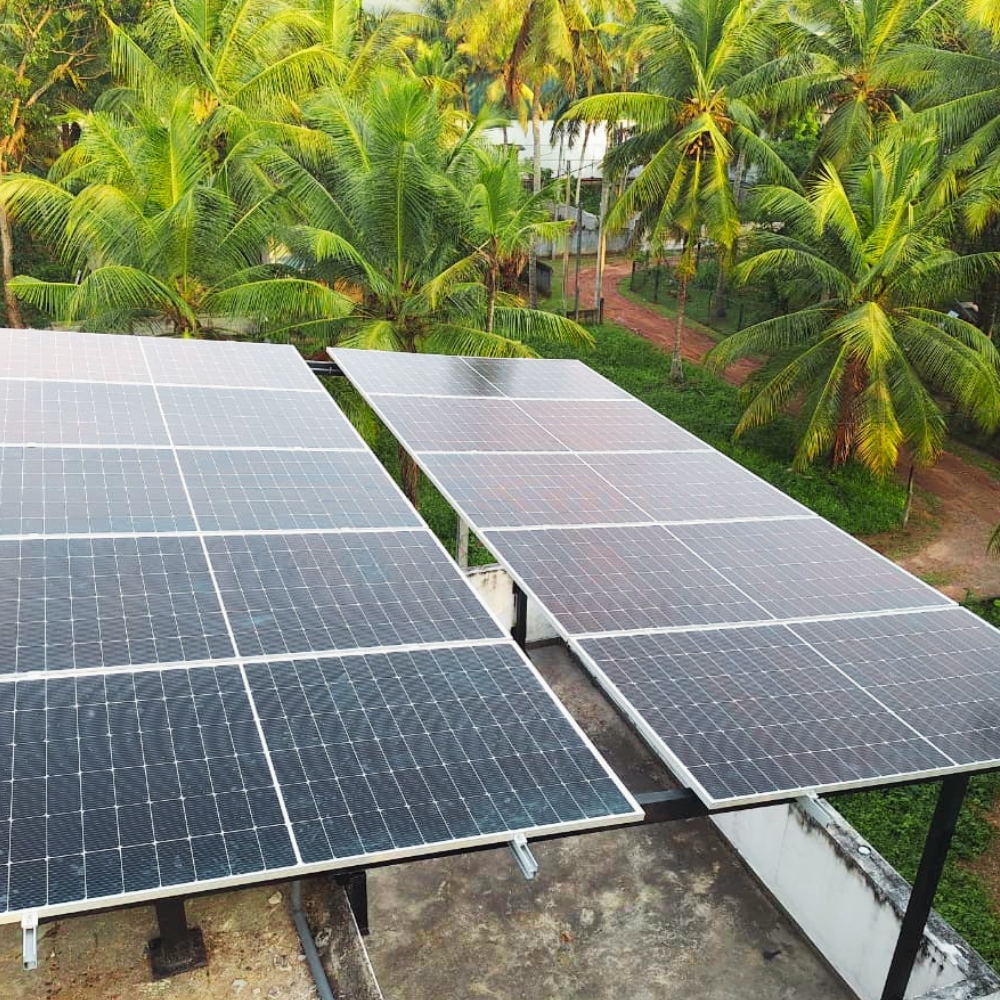

Solar Panel – 625W N-Type Bifacial (CMER-132BDS)

• Rated Power (Pmax): 625W
• Module Efficiency: 23.16%
• Voltage at Pmax (Vmp): 41.70V
• Current at Pmax (Imp): 14.99A
• Open Circuit Voltage (Voc): 49.90V
• Short Circuit Current (Isc): 16.06A
• Power Tolerance: 0 ~ +5W
• Maximum System Voltage: 1500V
• Maximum Series Fuse Rating: 30A

Bifacial Performance:
• Bifacial Gain: 5% – 10%
• Max Power (Rear Gain): up to ~688W

Mechanical Data:
• Cell Type: N-Type TOPCon
• Cells: 132 (Half-cut)
• Front Glass: 2.0mm tempered, AR coated
• Back Glass: 2.0mm tempered
• Frame: Anodized aluminium alloy
• Junction Box: IP68
• Connector: MC4 compatible
• Dimensions: 2382 × 1133 × 30 mm
• Weight: 33.7 kg

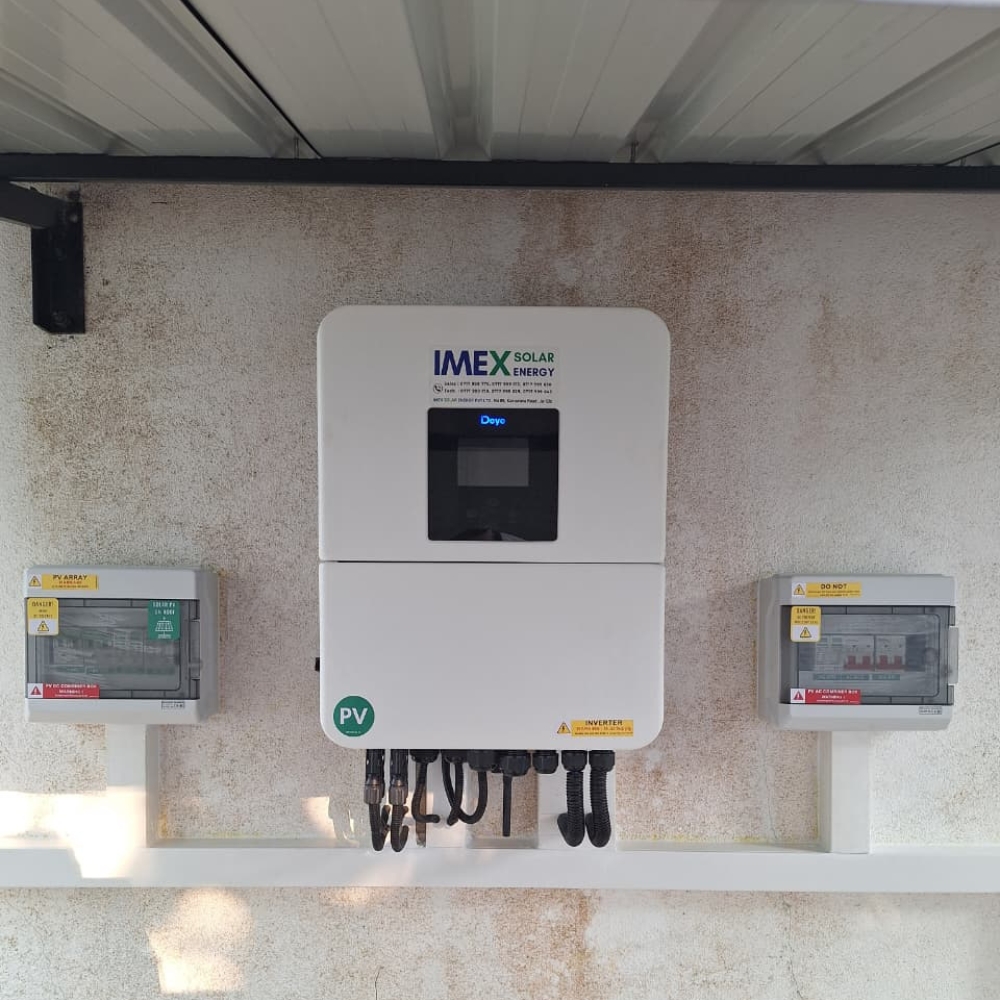

Inverter – DEYE 5kW Hybrid (SUN-5K-SG04)

• Rated Output Power: 5000W
• Max PV Input Power: 6500W
• Max PV Input Voltage: 500V
• MPPT Voltage Range: 150V – 425V
• Start-up Voltage: 125V

MPPT & Input:
• Number of MPPT: 2
• Strings per MPPT: 1 / 1
• Max PV Input Current: 18A × 2
• Max Short Circuit Current: 27A × 2

AC Output:
• Output Voltage: 220 / 230V
• Frequency: 50 / 60Hz
• Max Output Current: 25A
• Power Factor: 0.8 leading to 0.8 lagging
• THD: <3%

Efficiency:
• Max Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%

General Data:
• Operating Temperature: -40°C to +60°C
• Cooling: Natural cooling
• Noise: <30 dB
• IP Rating: IP65
• Max Altitude: 2000 m
• Communication: RS485 / CAN
• Monitoring: WiFi / Bluetooth / GPRS (optional)

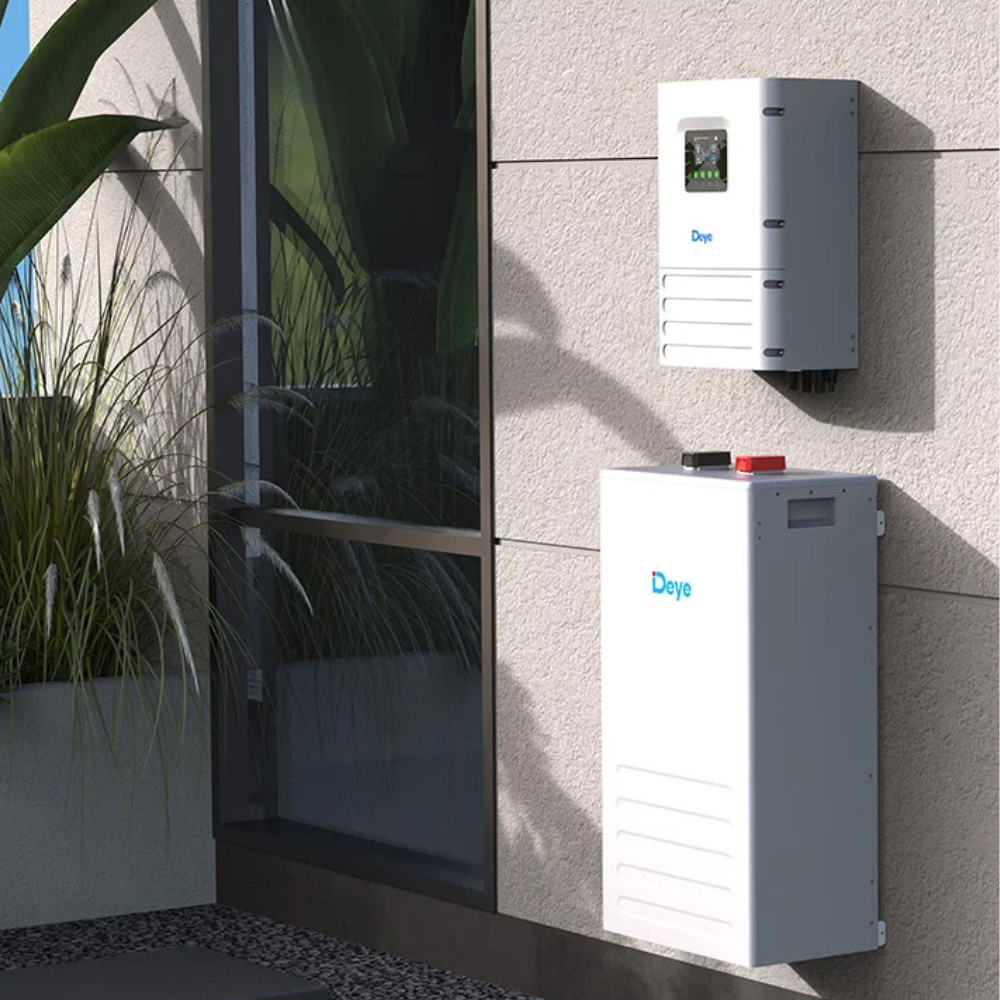

Battery – DEYE SE-F5 (5.12kWh)

• Battery Type: LiFePO4
• Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V – 57.6V
• Energy Capacity: 5.12kWh

Charge / Discharge:
• Max Continuous Charge Current: 100A
• Max Continuous Discharge Current: 120A
• Peak Discharge Current: 150A (10 sec)

System Parameters:
• Recommended Depth of Discharge: 80%
• Scalability: Up to 32 units in parallel
• Cycle Life: ≥6000 cycles

General Data:
• Dimensions: 370 × 548 × 140 mm
• Weight: ~41 kg
• IP Rating: IP21
• Operating Temperature:
 • Charge: 0°C to 55°C
 • Discharge: -20°C to 55°C
• Communication: CAN2.0 / RS485

General System

• System Type: Hybrid (Solar + Grid + Battery)
• Output Phase: Single Phase
• Monitoring: App / WiFi Enabled
• Installation Type: Rooftop / Ground Mount
• Operating Temperature Range: -10°C to +55°C
• Protection: Overload / Short Circuit / Over Voltage / Temperature Protection
