General

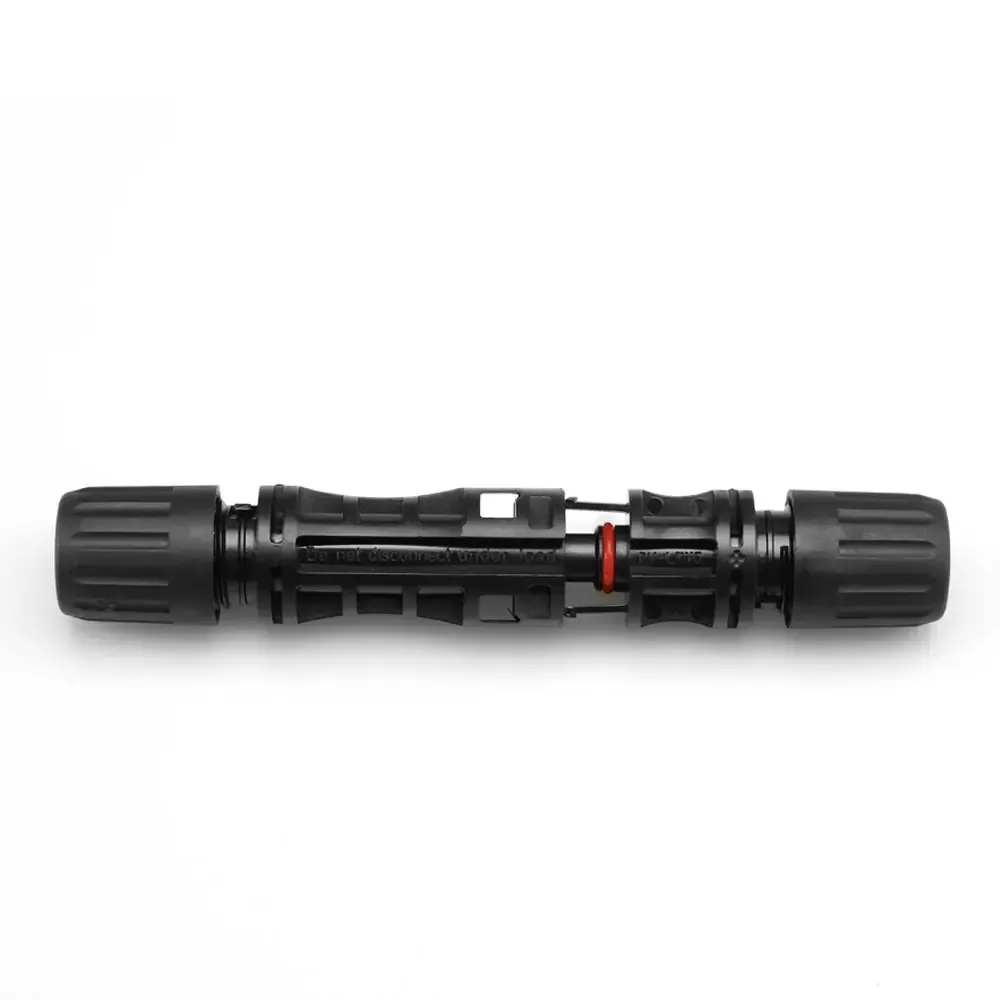

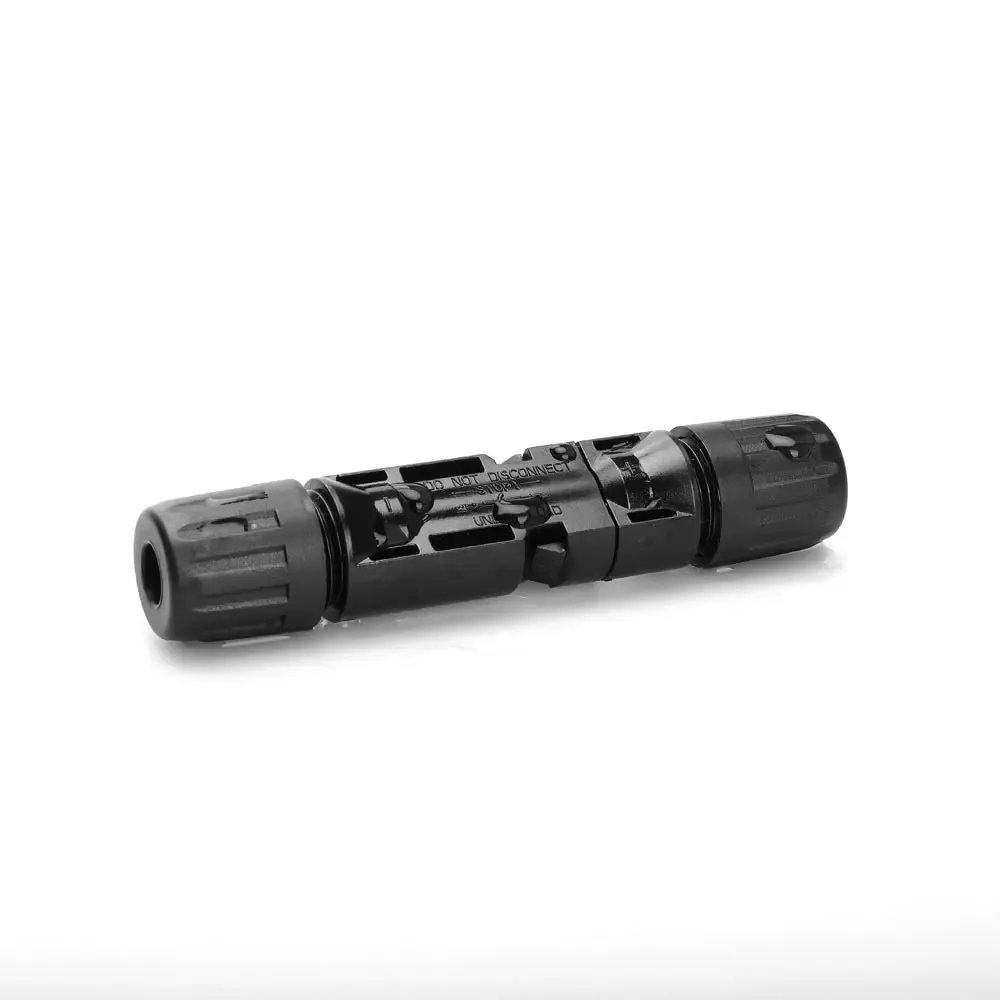

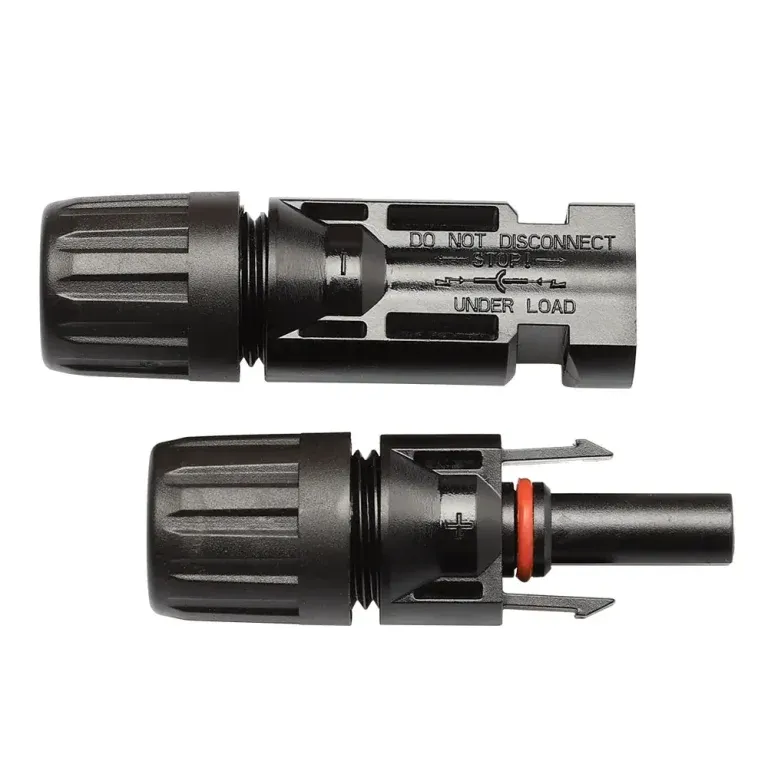

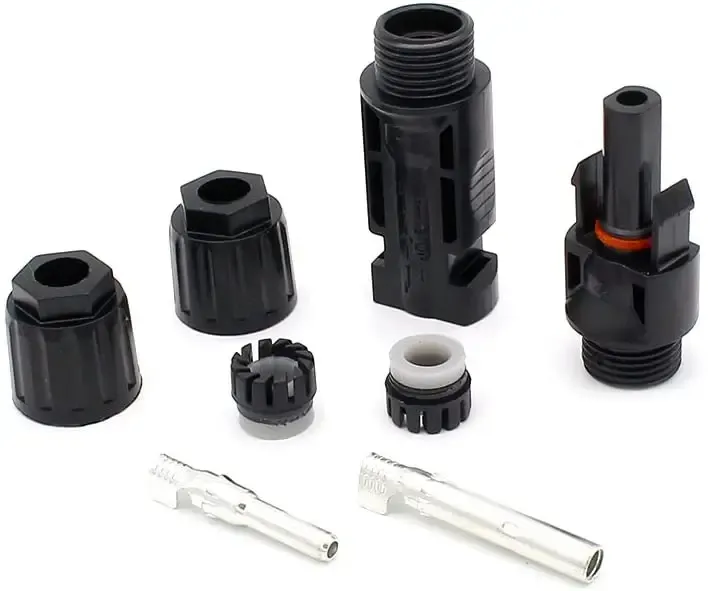

• Product Type: MC4 Solar Connector
• Connector System: Ø 4 mm
• Standard: IEC 60068-2-52

Electrical Characteristics

• Rated Voltage:
 • 1000V DC (IEC)
 • 1500V DC (IEC)

• Rated Current:
 • 10A / 15A / 20A
 • Compatible Cable Sizes:
  • 1.5 mm², 2.5 mm², 4 mm², 6 mm²
  • 14AWG, 12AWG, 10AWG

• Test Voltage: 6kV (50Hz, 1 min)
• Contact Resistance: 0.5 mΩ

Materials

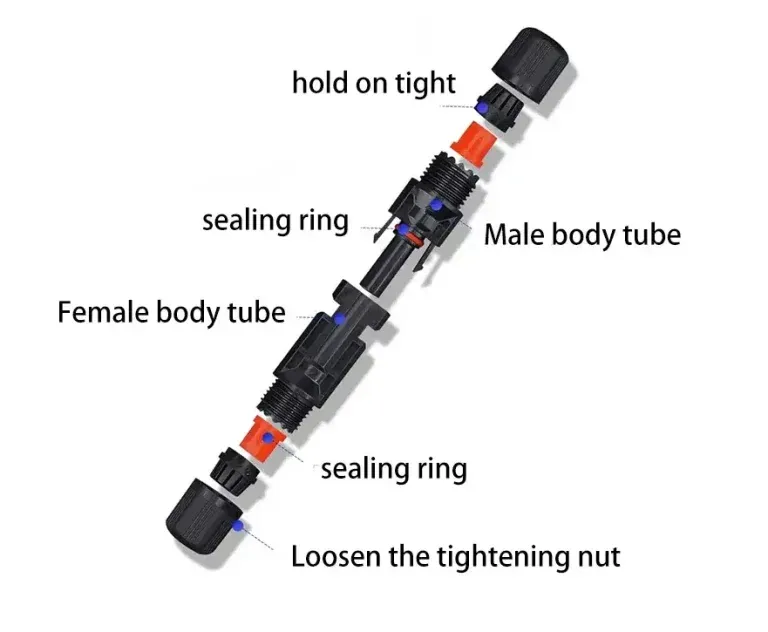

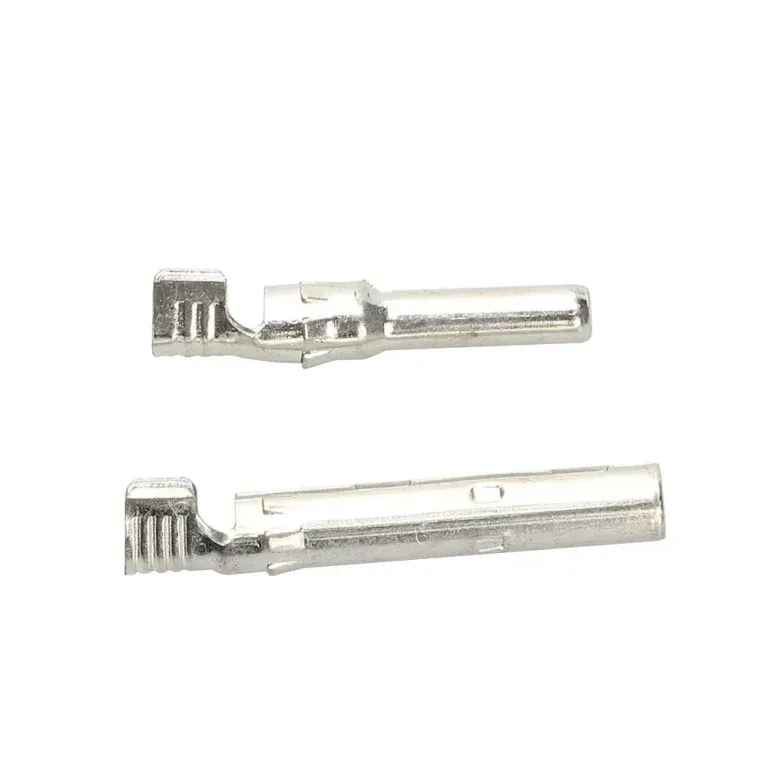

• Contact Material: Copper Alloy, Tin Plated
• Insulation Material: PC / PPO

Protection

• IP Rating (Mated): IP67
• IP Rating (Unmated): IP2X
• Safety Class: Class II
• Flame Class: UL94-V0

Mechanical

• Locking System: Snap-in

Environmental

• Operating Temperature:
 • -40°C to +90°C (IEC)
 • -40°C to +75°C (UL)

• Upper Temperature Limit: +105°C (IEC)

Features

• High voltage PV connector (up to 1500V)
• Suitable for solar panel string connections
• Weatherproof and UV-resistant design
• Secure snap-lock connection system
• Compatible with standard MC4 connectors
