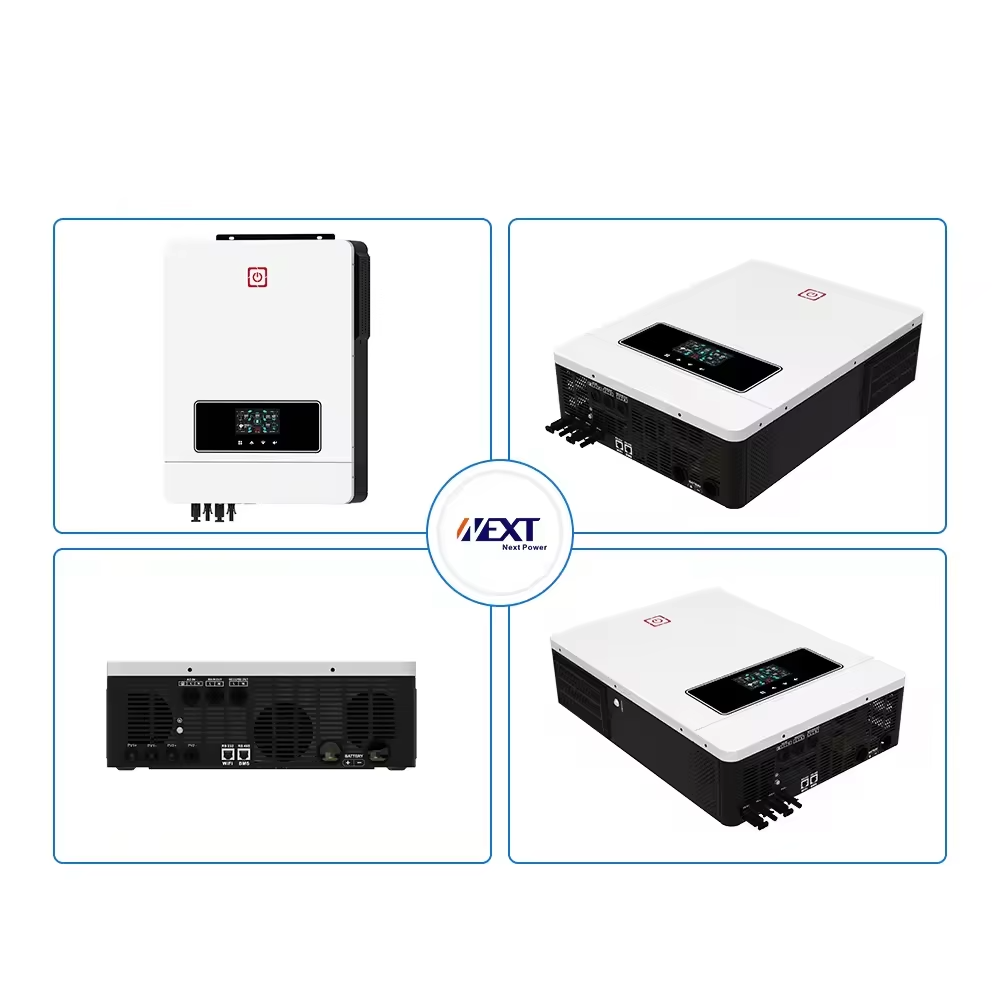

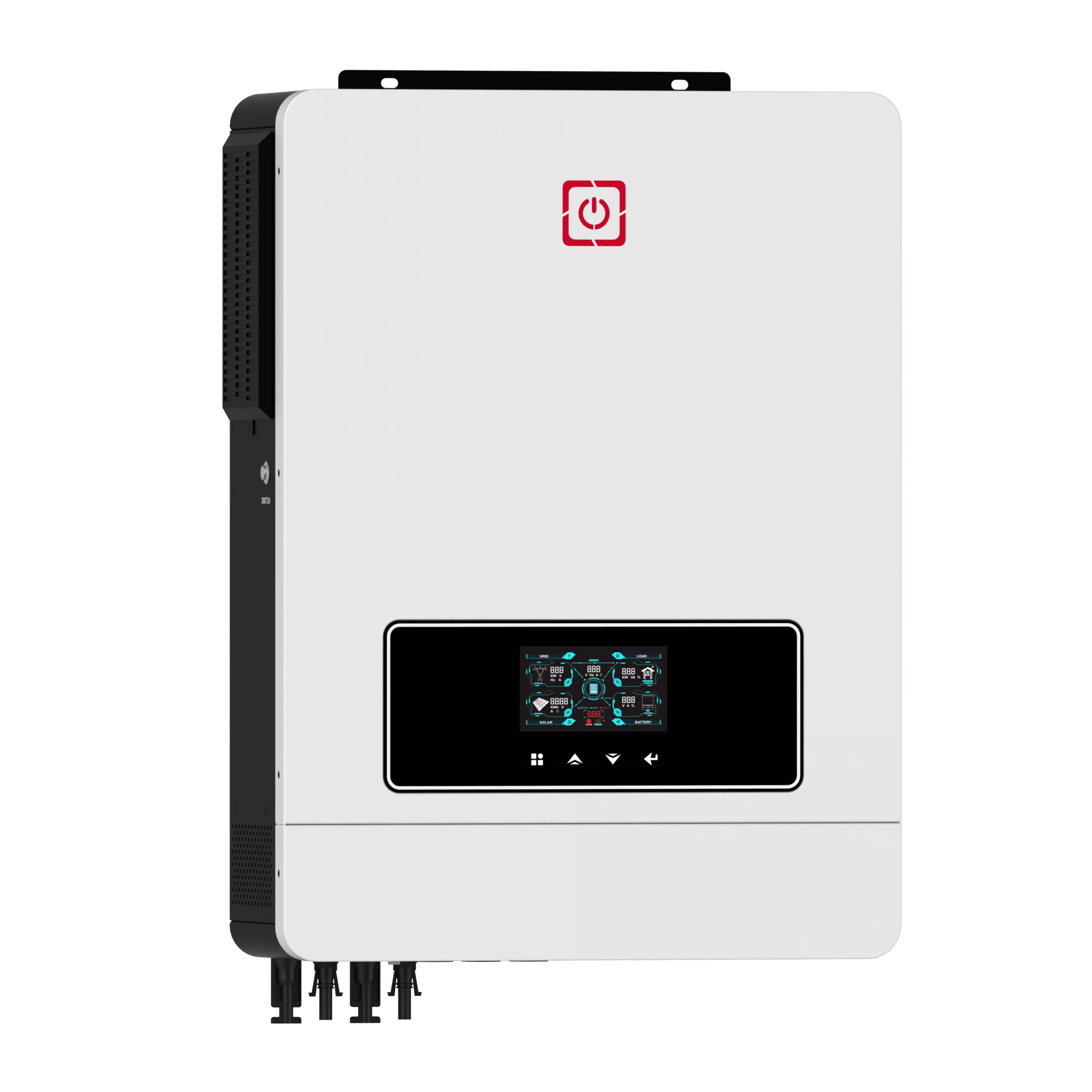

NEXT VICTOR NM-IV 4.2KW HYBRID SOLAR INVERTER

Hybrid DC/AC inverter for solar power systems with single-phase output and LCD display.

General

• Model: ECO-II-4.2KW
• Phase: Single Phase
• Maximum PV Input Power: 6200W
• Rated Output Power: 4200W / 4200VA

PV Input (DC)

• Maximum DC Voltage: 60V / 500VDC
• Start-up Voltage / Initial Feeding Voltage: 60VDC / 90VDC
• MPPT Voltage Range: 60V – 450VDC
• Maximum Input Current: 27A

AC Input

• AC Start-up Voltage / Auto Restart Voltage: 120VAC / 140VAC
• AC Input Voltage Range: 90V – 280VAC
• Maximum AC Input Current: 24.7A

AC Output (Battery Mode)

• Nominal Output Voltage: 220 / 230 / 240VAC
• Efficiency: 94%

Battery & Charger

• Nominal Battery Voltage: 24VDC
• Maximum Solar Charging Current: 120A
• Maximum AC Charging Current: 100A
• Maximum Charging Current: 120A

Physical

• Dimensions (D × W × H): 423 × 344 × 113 mm
• Package Dimensions (D × W × H): 500 × 415 × 180 mm

Interface

• Communication Port: Optional RS232 / WiFi (WiFi data logger required)

Environment

• Operating Temperature: -10°C to +50°C
