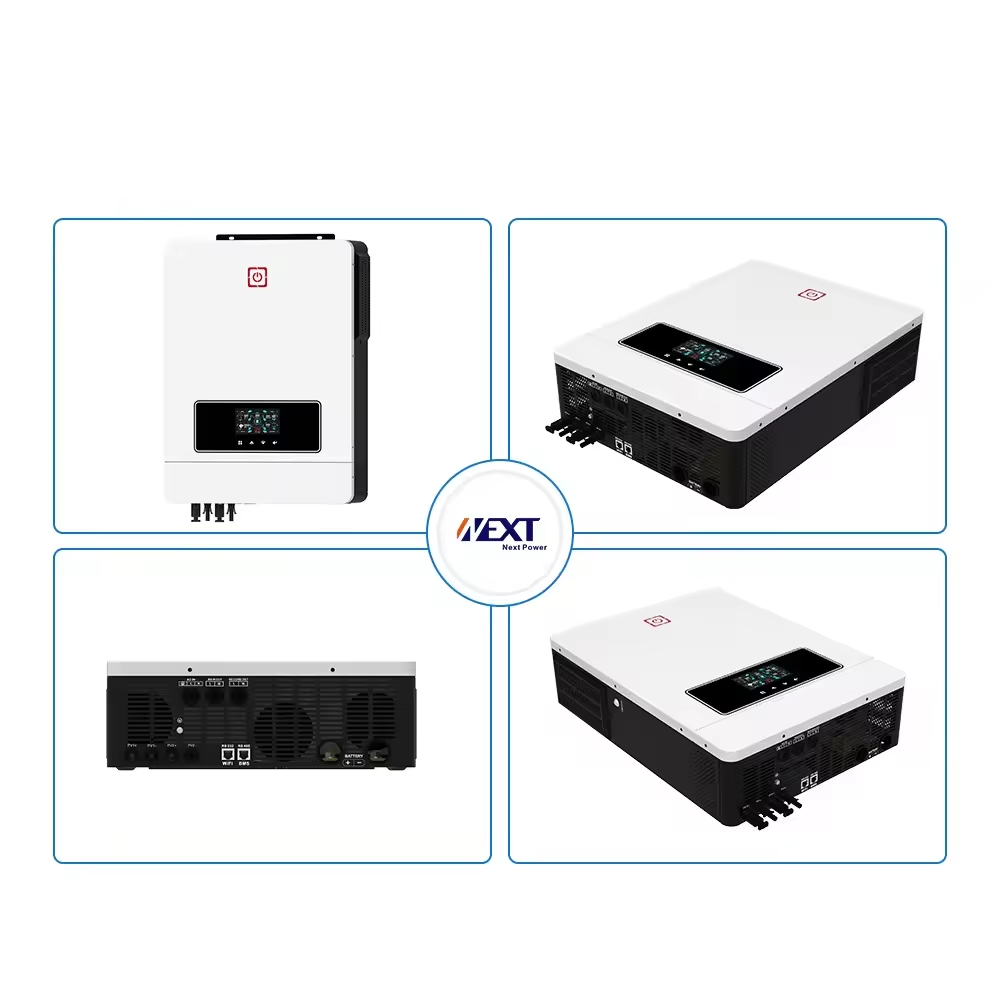

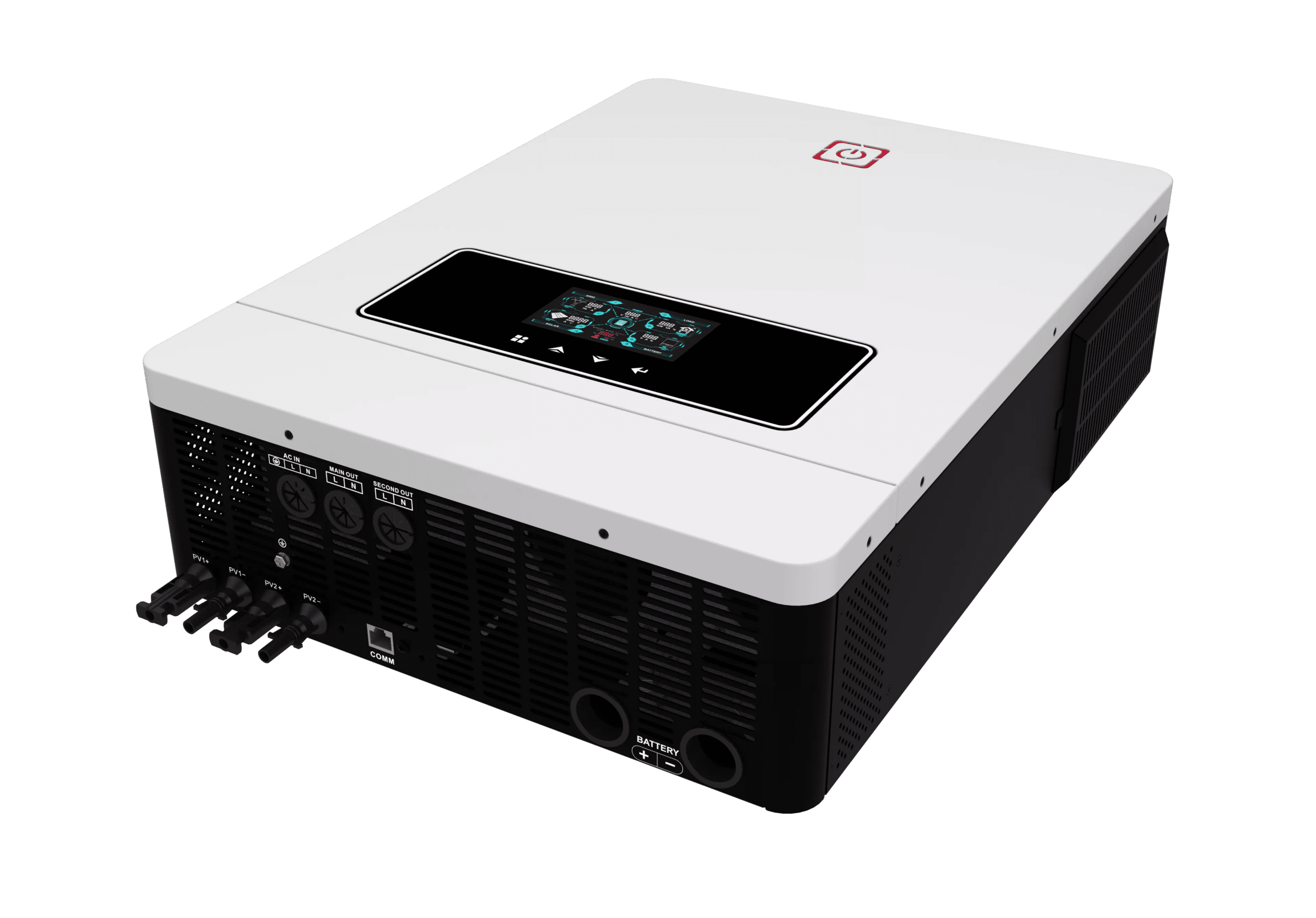

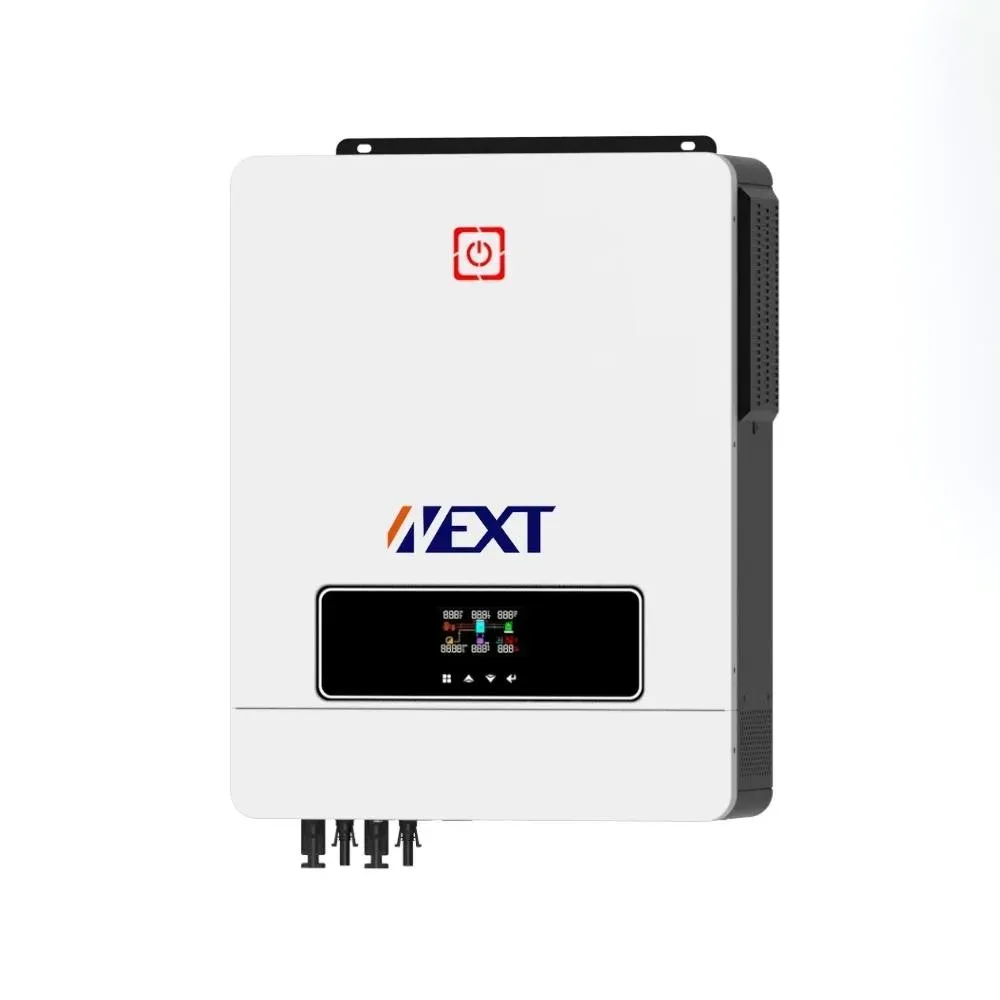

NEXT VICTOR MAX 8.2KW HYBRID OFF GRID SOLAR INVERTER

Pure sine wave hybrid solar inverter supporting on-grid and off-grid operation. High voltage PV input with built-in MPPT solar charger and dual output.

General

• Model: MAX-8.2KW
• Phase: Single Phase
• Maximum PV Input Power: 5400W + 5400W
• Rated Output Power: 8200W / 8200VA

PV Input (DC)

• Maximum DC Voltage: 500VDC
• Start-up Voltage / Initial Feeding Voltage: 90VDC / 120VDC
• MPPT Voltage Range: 90V – 450VDC
• Number of MPPT / Max Input Current: 2 / 18A

AC Input

• AC Start-up Voltage / Auto Restart Voltage: 120VAC / 140VAC
• AC Input Voltage Range: 90V – 280VAC
• Maximum AC Input Current: 48.2A

AC Output (Battery Mode)

• Nominal Output Voltage: 220 / 230 / 240VAC
• Efficiency: 94%

Battery & Charger

• Nominal Battery Voltage: 48VDC
• Maximum Solar Charging Current: 160A
• Maximum AC Charging Current: 140A
• Maximum Charging Current: 160A

Physical

• Dimensions (D × W × H): 500 × 390 × 136 mm
• Package Dimensions (D × W × H): 588 × 463 × 205 mm

Interface

• Communication Port: Optional RS232 / WiFi (WiFi data logger required)

Environment

• Operating Temperature: -10°C to +50°C
