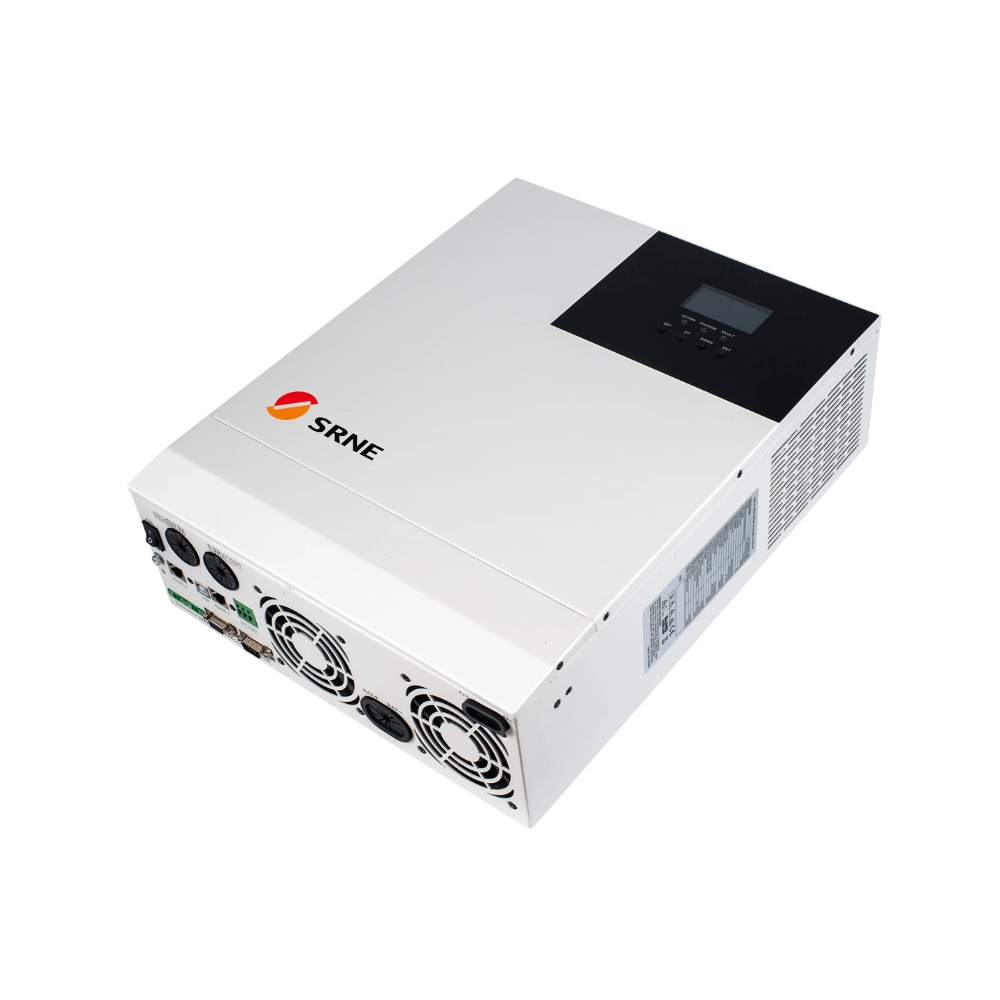

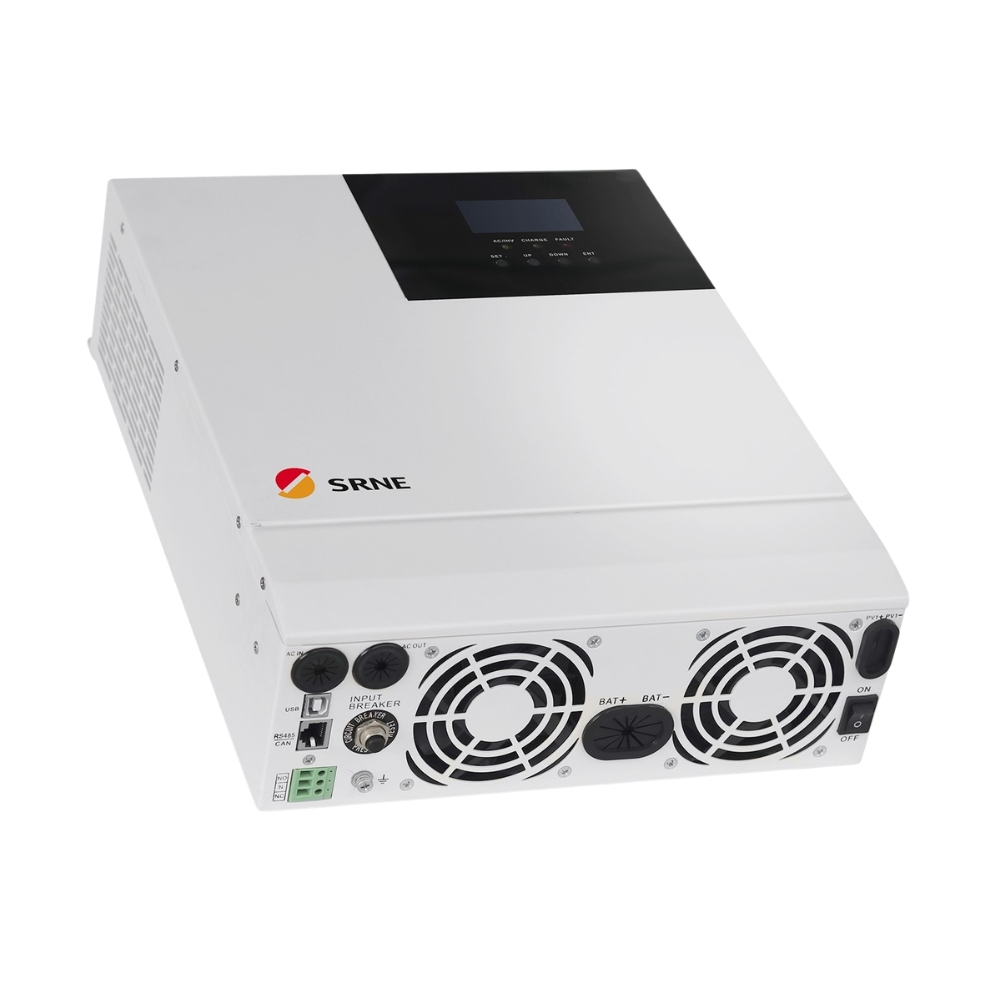

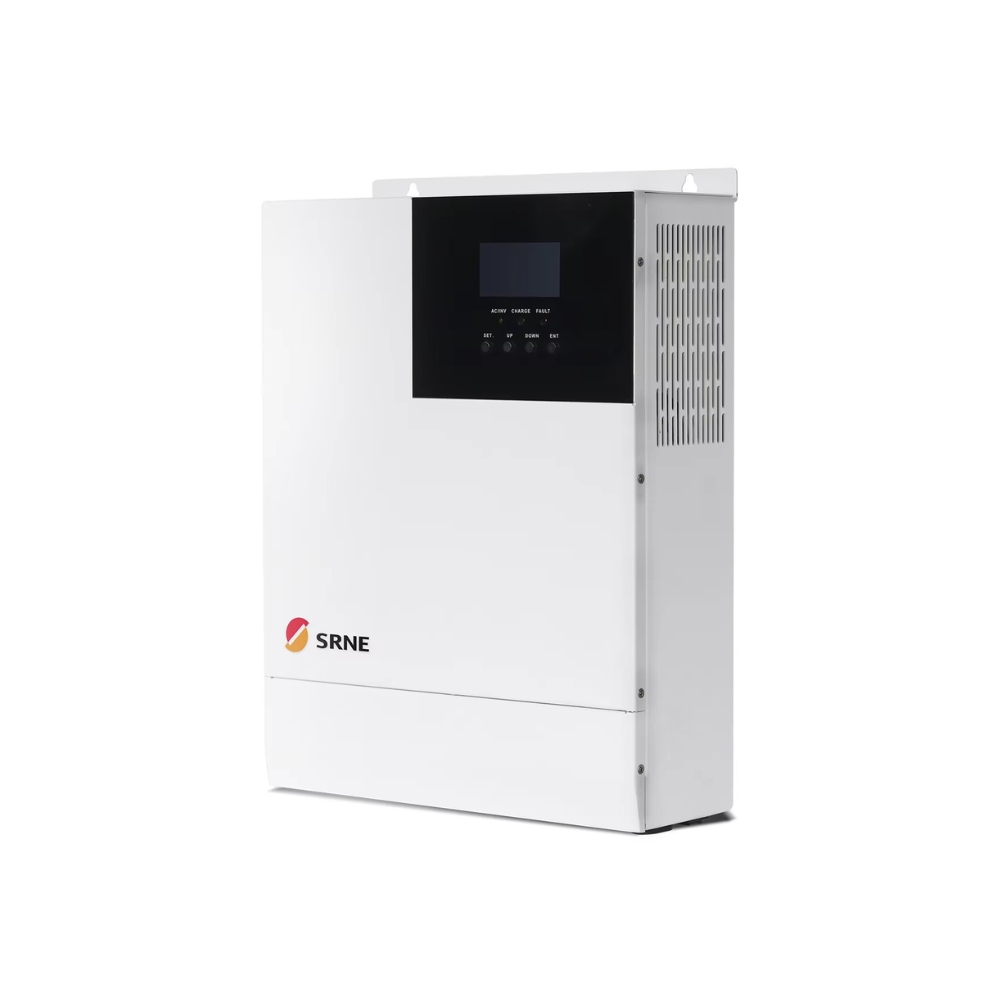

SRNE HF2430S60-100 3KW HYBRID SOLAR INVERTER 24V WITH MPPT

The SRNE HF2430S60-100 is a 3kW hybrid solar inverter designed for off-grid solar systems with 24V battery banks. It includes a built-in MPPT solar charge controller, AC charger, and hybrid charging capability. The inverter provides pure sine wave output and supports lithium, lead-acid, and user-defined batteries.

Features

• 3kW hybrid solar inverter
• Built-in MPPT solar charge controller
• Pure sine wave output
• Supports lithium / lead-acid batteries
• Hybrid solar + grid charging
• High MPPT tracking efficiency
• Generator compatible
• Fast transfer time
• Fan cooling system
• RS485 / CAN communication
• WiFi / GPRS optional monitoring
• Transformerless design

Inverter Output

• Rated Output Power: 3,000W
• Peak Power: 6,000VA
• Output Voltage: 230Vac (Single Phase)
• Rated Frequency: 50/60Hz
• Waveform: Pure Sine Wave
• Switch Time: 10ms (typical)
• Motor Load Capacity: 2HP

Battery

• Battery Type: Lead-acid / Li-ion / User-defined
• Rated Battery Voltage: 24V
• Battery Voltage Range: 20V – 33V
• Max Solar Charging Current: 60A
• Max Grid Charging Current: 80A
• Max Hybrid Charging Current: 140A

Solar Input (MPPT)

• Number of MPPT: 1
• Max PV Input Power: 1,600W
• Max PV Input Current: 40A
• Max PV Open Circuit Voltage: 108V
• MPPT Voltage Range: 30V – 90Vdc

Grid / Generator Input

• Input Voltage Range: 170V – 280Vac
• Input Frequency Range: 50/60Hz
• Bypass Overload Current: 30A

Efficiency

• MPPT Tracking Efficiency: 99.9%
• Max Efficiency: 92%

General Specifications

• Dimensions: 378 × 280 × 103 mm
• Weight: 6.8kg
• Protection Degree: IP20 (Indoor)
• Cooling Method: Fan Cooling
• Operating Temperature: -10°C to +55°C
• Humidity: 5% – 95%
• Communication: RS485 / CAN / USB / Dry Contact
• External Module: WiFi / GPRS (Optional)
• Topology: Transformerless

Certification

• RoHS
• EN61000
• IEC 62109
• PSE Certification
