1 YEAR WARRANTY

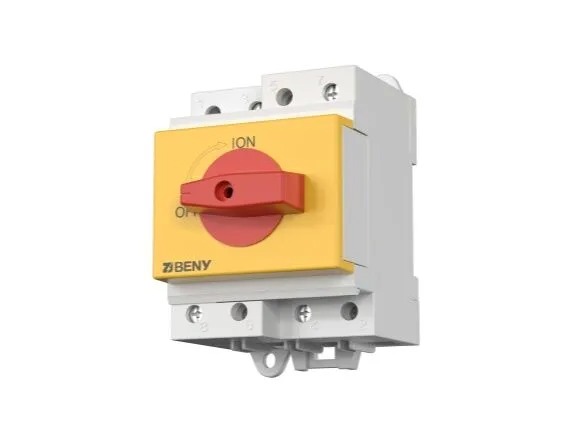

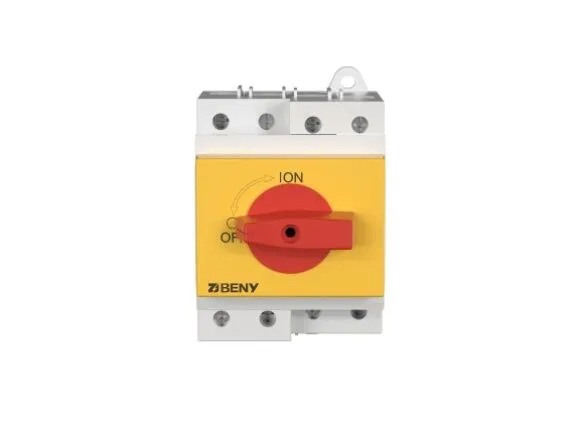

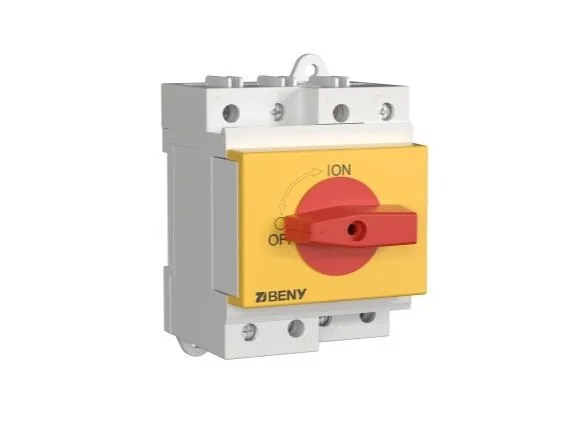

Z BENY DC ISOLATOR 4P 32A 1200V LOCKABLE SWITCH

General

• Brand: Z BENY
• Model: BYT-2-32
• Product Type: DC Isolator Switch
• Function: Isolation / Control
• Mounting: DIN Rail

Electrical Characteristics

• Rated Voltage: Up to 1200V DC
• Rated Current: 16A / 25A / 32A
• Poles: 4P
• Utilization Category: DC-PV2

• Rated Operational Voltage (Ue):
 • 300V / 600V / 800V / 1000V / 1200V

• Rated Insulation Voltage (Ui): 1200V
• Rated Frequency: DC

• Conventional Free Air Thermal Current (Ith): 32A
• Enclosed Thermal Current (Ithe): Same as Ith

• Rated Short-time Withstand Current (Icw):
 • 1kA (1s), 4kA (0.1s), 1.7kA (1s), 1.7kA (0.1s)

• Rated Short-time Making Capacity (Icm):
 • 1.7kA, 4kA, 3kA

• Rated Conditional Short-circuit Current: 3kA
• Rated Impulse Withstand Voltage (Uimp): 8.0kV

• Overvoltage Category: II
• Polarity: No polarity (+ / – interchangeable)

Performance

• OFF Load Switching
• Flame-Retardant Construction
• Arcing Time: < 3ms
• Service Life (Mechanical): 15,000 operations
• Service Life (Electrical): 1,000 operations

Installation & Environment

• IP Rating: IP20
• Mounting Type: Vertical or Horizontal
• Operating Temperature: -40°C to +85°C
• Pollution Degree: 3
• Suitable Environment: Indoor

Compliance

• Standard: IEC60947-3, AS60947.3

Application

• Solar PV DC Isolation
• String Combiner Systems
• Inverter DC Protection
• Residential & Commercial Solar Installations
