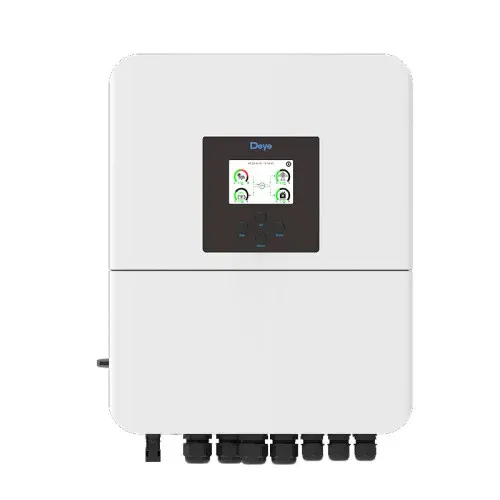

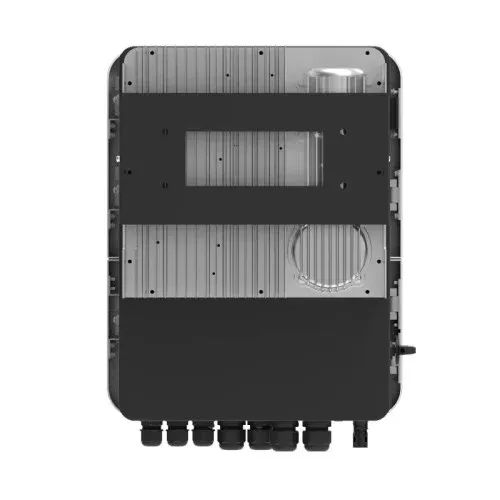

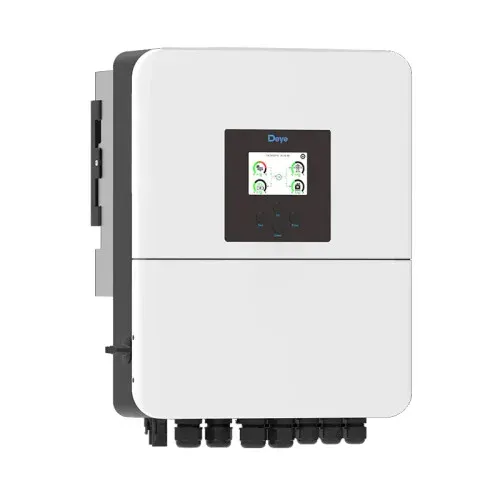

DEYE SUN-10K-SG05LP3-EU-SM2 HYBRID SOLAR INVERTER

General

• Model: SUN-10K-SG05LP3-EU-SM2
• Phase: Three Phase
• Rated Output Power: 10000W
• Max AC Output Apparent Power: 11000VA

Battery Input

• Battery Type: Lead-acid / Lithium-ion
• Battery Voltage Range: 40V – 60V
• Max Charging Current: 210A
• Max Discharging Current: 210A
• Charging Strategy: Self-adaption to BMS

PV Input (DC)

• Max PV Input Power: 20000W
• Max PV Input Voltage: 800V
• Start-up Voltage: 160V
• MPPT Voltage Range: 200V – 650V
• Rated PV Input Voltage: 550V

MPPT & Input:
• Number of MPPT: 2
• Strings per MPPT: 1 + 1
• Max PV Input Current: 20A + 20A
• Max Short Circuit Current: 30A + 30A

AC Input / Output

• Rated Output Voltage: 220 / 380V, 230 / 400V
• Output Frequency: 50 / 60Hz
• Output Type: 3L + N + PE

• Rated AC Output Current: 15.2 / 14.5A
• Max Output Current: 16.7 / 16A

• Max AC Input Power: 10000W
• Max AC Input Current: 16.7 / 16A

• Power Factor: 0.8 leading to 0.8 lagging
• THD: <3%

Efficiency

• Max Efficiency: 97.6%
• Euro Efficiency: 97.0%
• MPPT Efficiency: >99%

Protection

• DC reverse polarity protection
• AC overcurrent / overvoltage protection
• Output short circuit protection
• Thermal protection
• Ground fault detection
• Anti-islanding protection
• Residual current detection
• Surge protection (Type II DC / AC)

Interface & Monitoring

• Communication: RS485 / RS232 / CAN
• Monitoring: WiFi / Bluetooth / 4G / LAN (optional)

General Data

• Operating Temperature: -40°C to +60°C
• Humidity: 0 – 100%
• Altitude: ≤3000m
• Noise: ≤55 dB
• IP Rating: IP65
• Cooling: Intelligent Air Cooling
• Inverter Topology: Non-isolated

Physical

• Dimensions (W × H × D): 386 × 660 × 250 mm
• Weight: ~35.2 kg

Standards

• Grid Regulation: IEC 61727, IEC 62116, EN 50549, NRS 097
• Safety / EMC: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1/2
